​ How Does Pouring Temperature Affect Casting Quality? What Defects Can It Cause?

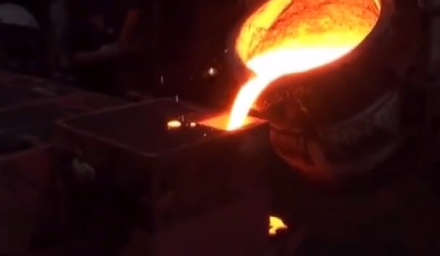

In the casting process, pouring temperature is one of the most critical process parameters influencing final casting quality. Whether producing gray iron, ductile iron, or cast steel components, improper pouring temperature control can significantly increase defect rates and even lead to batch rejection.

When analyzing casting defects, many foundries focus on gating design, riser configuration, or chemical composition, but often overlook the importance of maintaining a precise pouring temperature window. In reality, pouring temperature directly affects molten metal fluidity, solidification behavior, microstructure formation, gas solubility, and surface quality.

This article systematically explains:

1. The impact of excessively high pouring temperature

2. The impact of excessively low pouring temperature

3. Common casting defects related to temperature

4. Practical control recommendations

1. What Happens When Pouring Temperature Is Too High?

When molten metal temperature exceeds the appropriate range, several issues may occur.

1.1 Increased Shrinkage Porosity and Cavities

Higher temperatures prolong solidification time and extend the feeding distance.
If the feeding system is not properly matched, it may result in:

• Concentrated shrinkage cavities

• Dispersed shrinkage porosity

• Internal looseness

This is especially common in thick-section castings.

1.2 Sand Burning and Metal Penetration

Excessively high temperature increases thermal impact on the mold, which can lead to:

• Sand burning

• Metal penetration

• Difficult cleaning and poor surface finish

These issues are more pronounced in resin sand processes.

1.3 Coarse Microstructure and Property Reduction

Overheating may result in:

• Coarse grains

• Enlarged eutectic cells

• Reduced mechanical performance

Ductile iron is particularly sensitive, as high temperature can negatively affect nodularity and matrix structure.

1.4 Increased Gas Porosity

Higher molten metal temperatures:

• Increase gas solubility

• Intensify oxidation reactions

• Generate more oxide inclusions

During cooling, dissolved gases precipitate and form porosity defects.

2. What Happens When Pouring Temperature Is Too Low?

Excessively low pouring temperature can also create serious quality problems.

2.1 Cold Shuts and Misruns

When temperature is insufficient, molten metal fluidity decreases, resulting in:

• Cold shuts (incomplete fusion of metal streams)

• Misruns

• Incomplete filling of thin sections

Thin-wall castings are particularly vulnerable.

2.2 Slag Inclusion

At lower temperatures:

• Metal viscosity increases

• Slag flotation becomes difficult

• Inclusions are more easily trapped inside the cavity

This may cause internal defects detected during machining or inspection.

2.3 Increased Chill Tendency in Gray Iron

Low pouring temperature combined with rapid cooling may:

• Promote white iron formation

• Increase hardness

• Cause machining difficulties

3. Typical Pouring Temperature Ranges

Below are common reference ranges (actual values vary depending on casting design and process conditions):

Final pouring temperature should be determined based on:

• Wall thickness

• Gating and feeding design

• Mold type (green sand, resin sand, etc.)

• Ambient temperature and seasonal variation

4. Relationship Between Temperature and Typical Defects

Temperature Too High May Cause:

• Shrinkage cavities and porosity

• Gas porosity

• Sand burning and penetration

• Coarse microstructure

Temperature Too Low May Cause:

• Cold shuts

• Misruns

• Slag inclusion

• Increased hardness or chilling tendency

Maintaining the correct temperature window is therefore essential.

5. Practical Control Recommendations

To ensure stable casting quality:

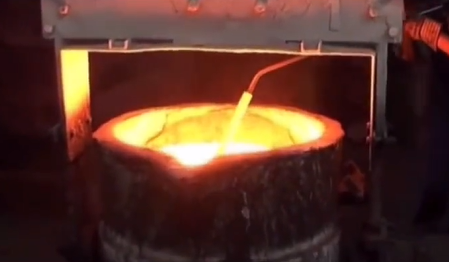

1. Use calibrated and reliable temperature measurement equipment

2. Establish standard pouring temperature ranges for each product type

3. Coordinate pouring timing with inoculation treatment (especially for ductile iron)

4. Adjust temperature windows seasonally

5. Build defect-to-temperature traceability records for data analysis

Conclusion

Pouring temperature is not merely a routine operating parameter — it is a decisive factor that directly affects casting integrity, internal structure, and performance reliability.

Excessively high temperatures may cause shrinkage defects, gas porosity, and coarse microstructure.
Excessively low temperatures may result in cold shuts, incomplete filling, slag inclusion, and hardness issues.

For export-oriented casting projects with strict inspection standards, maintaining a stable and well-controlled pouring temperature window is essential for ensuring consistent quality and reducing production risks.
